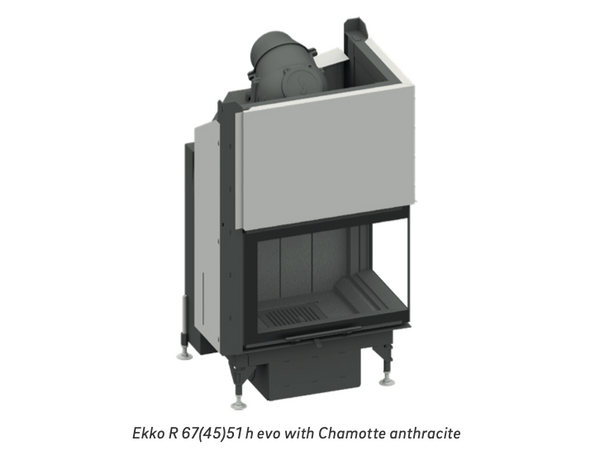

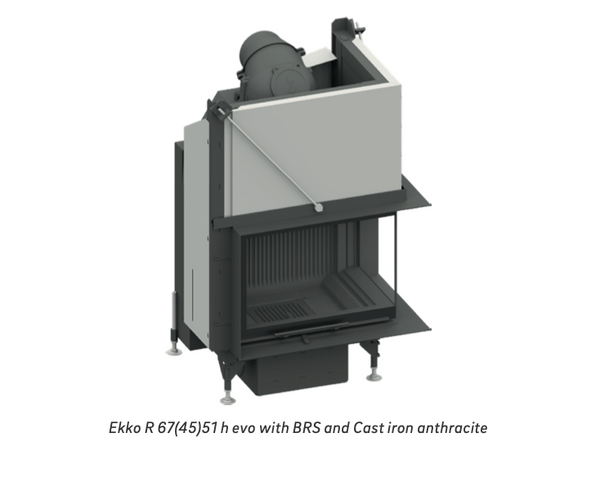

Schmid Ekko R 67 h (45) EVO Fireplace insert - Lift hatch

€6.400,00
€6.400,00
Venta Agotado
Impuesto incluido.
Hatch height:
Interior lining:

Descripción

Schmid Ekko R 67 h (45) Evo is a two-sided corner fireplace insert with a sleek, modern glass front that delivers expansive views of the fire from multiple angles. Its balanced proportions and clean lines make it an attractive focal point in contemporary interiors.

Designed for efficient heating of medium to larger spaces, the insert features precise combustion air control and an advanced air wash system to help keep the glass clear. Built with quality materials and engineered for easy installation, it supports external combustion air connection and integrates smoothly into a custom surround.

This product is supplied through our showroom in Marbella, supporting projects across the Costa del Sol, with professional consultation and delivery available throughout Spain.

Details

  • Fireplace insert, open on two sides
  • 67(45)51 – Height 51 cm
  • 67(45)57 – Height 57 cm
  • Guillotine door, not supplied selfclosing from the factory
  • Glass: 2-section
  • Air module with Primary air shutdown
  • Integrated flame correction for a straight flame
  • Adjustable feet adjustable in height (manually/allen key)
  • High-grade cast-iron dome, all parts can be moved, adjustable between 0 – 90°

Technical Data

  • Nominal heat output: 9 kW
  • Heat output range: 3.2 – 10 kW
  • Efficiency: > 80 %
  • Combustion air connector diameter: Ø 125 mm
  • Recommended log length: 33 cm
  • Weight: 220 – 260 kg
  • Heat distribution: ~50 % through viewing glass and ~50 % convective output
  • Flue gas data (nominal): ~9.6 g/s mass flow, ~287 °C flue gas temperature
  • Combustion air requirement: ~93.3 m³/h
  • Insulation thickness (non-combustible wall): ~80 mm
  • Energy efficiency class: A (under EU regulation)

Lead time is an estimated average of 5 weeks depending on the circumstances. If you need to know exactly when the product will be shipped, please contact support.
