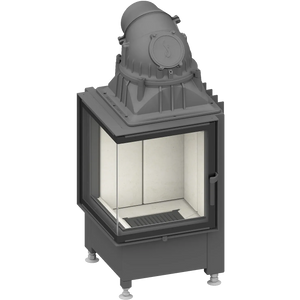

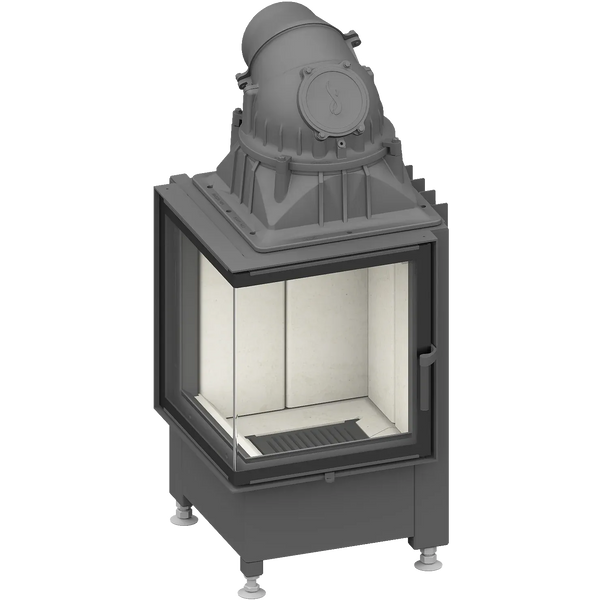

The Schmid Ekko 45 is a compact fireplace with a corner opening. The angle of the hatch is selectable. In addition, a lift hatch version is also available. The fireplace hearth is manufactured in Germany under strict quality control using the highest quality materials. The inner lining of the firebox is made of velvet, which is resistant to exceptional heat and hard knocks. The rated power of the firebox is approximately 7 kilowatts. The combustion process and heat output can be easily adjusted with a single lever. Cleaning and maintenance of the fireplace core is easy, as the hinged door can be locked in the 'open' position. Removal of ashes from the firebox is easy thanks to the lift-up ash tray. Around the ash hearth, the desired shell structure can be built. We recommend Silca sheet as a building material for the shells!
Schmid fireplace cores are top quality!
Lightness and tightness The fireplace glass door moves quietly and without the use of force thanks to a very easy-running bearing. The glass hatch with its seals is pressed into the fireplace body when closed. Glass hatch mouldings Slanted stainless steel slats keep the slats tight. Ash does not collect in the mouldings, but drips back into the firebox. The hatch stays clean. Fire air supply Fire air is blown into the firebox from above and below the hatch. This keeps the glass of the hatch clean. The wood combustion is completed by supplying combustion air also from under the grate. The wood burns cleanly regardless of the amount of combustion air supplied. High-quality cast iron grate The grate is made of 15mm thick cast iron. There is no need to remove the cast iron grate to remove the ash: fold the grate against the back wall and remove the ash box. Fire air connection. The firebox must be fitted as standard on all fireplaces. For connection of external combustion air. Fire air can be taken from the side, rear or bottom. This gives a fully enclosed fireplace system. Adjustable feet Standard on all fireplace cores. You can always get your fireplace heart at the right height with the screw-in adjustment feet. Excellent combustion air control Depending on your heating needs, a combustion air control can work wonders. Fire air control is done with a single lever at the bottom of the hatch. Adjusting the heat output and combustion time has never been easier. Reinforced iron dome The cast iron dome is the main heat source for the fireplace core. The hot flue gas releases heat through the cast iron dome into the circulating air. Cast iron can withstand very high temperatures and is a durable material. The cast iron dome can be turned in all directions and is adjustable for all connections. Ease of maintenance. All parts are accessible from service hatches inside the fireplace core.
Lead time is an estimated average of 5 weeks depending on the circumstances. If you need to know exactly when the product will be shipped, please contact support.
