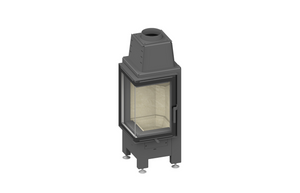

• Gray indoor fireplace on a white background

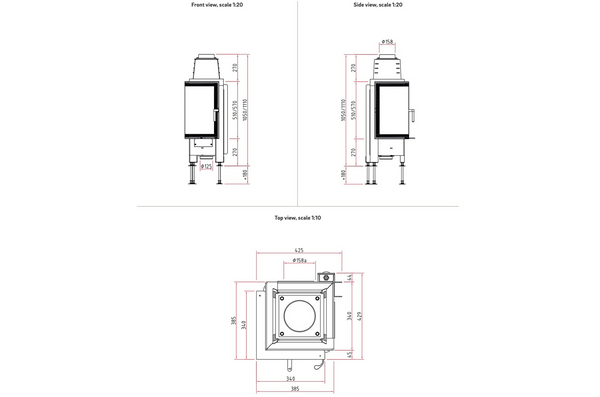

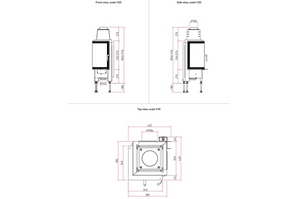

  • Technical drawings of a fireplace object with dimensions labeled

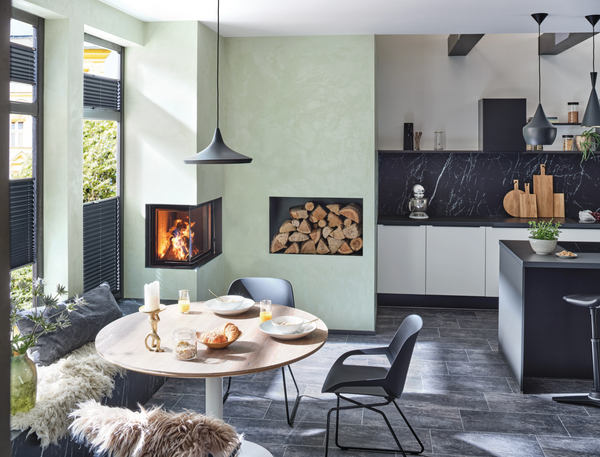

  • Modern kitchen and dining area with a fireplace and open-plan layout.
  • Gray indoor fireplace on a white background
  • Technical drawings of a fireplace object with dimensions labeled
  • Modern kitchen and dining area with a fireplace and open-plan layout.

Schmid Ekko L 3451 S Hinged Door Wood-Burning Indoor Fireplace

€3.448,50
€3.448,50
Rea Slutsåld
Moms inkluderad.

Beskrivning

The Ekko 34(34) S is a fireplace insert that is open on two sides and designed with a 1-section glass configuration. It provides a two-sided view of the fire and is equipped with a hinged front door for practical operation.

This model features a self-closing door and a standard firebox inner lining made of Caloceram®. It is constructed with a high-quality steel dome to support stable combustion performance and durability.





This product is supplied through our showroom in Marbella, supporting projects across the Costa del Sol, with professional consultation and delivery available throughout Spain.

Available heights:

  • 34(34)51 – Height 51 cm
  • 34(34)57 – Height 57 cm

Technical Data

  • Nominal heat output: 7 kW
  • Thermal output range: –
  • Efficiency: over 80 %
  • Insulation thickness (with wall that does not need to be protected, based on SILCA® 250KM): 60 mm
  • Combustion air connector: Ø 125 mm
  • Recommend length of logs: 33 cm (standing)
  • Weight: 90 to 110 kg
  • Heat distribution through the viewing window: 50 %
  • Heat distribution, convective output: 50 %

Triple values with nominal heat output:

  • Flue gas mass flow: 6.4 g/s
  • Flue gas temperature: 275 °C
  • Required delivery pressure: 12 Pa
  • Recommended flue length: 1.7 m

Data for closed design

  • Minimum heat-emitting surface: 3.3 m²

Lead time is an estimated average of 5 weeks depending on the circumstances. If you need to know exactly when the product will be shipped, please contact support.
